C.P Titanium Bars & Billets

Titanium Welding Wire Specification

Titanium offers similar strength of steel but is two times lighter and offers a amazing corrosion resistance. Grade 1 is the most pure type and is mostly welded with Grade 2 filler metal. The weldabillity of Titanium is excellent for most grades but extra care have to be taken for the gas protection on the weld pool, the weld pool needs to stay protected until it cooled down to at least?470oC. Often Titanium is welded in a gas chamber with pure argon gas to make sure that the weld pool gets proper protection. Ti-wire high performance welding wires is compliant AWS A5.16/SFA-5.16 standards for aerospace and power.

PRESENTATION OF BAOJI TITANIUM WIRE INDUSTRY CO., LTD.

Baoji Titanium wire industry Co.Ltd,which is AS9100C, ISO 9001:2008 certified manufacturer of titanium bars, titanium wire,titanium welding wire, filler rods, plates, forged parts for 20 years. Both commercial pure titanium and titanium alloys material. Currently our products serve the clients in aerospace, medical, industrial fields etc.

Tips on How to Choose the Right Titanium Grade

titanium wire, titanium bar, titanium plate, titanium sheet, titanium disc, Gr.2, Gr. 5, Ti6Al4V, Gr.7, Gr. 12, industrial use, medical use, chemical use, aerospace, mining applications

Description
Specification

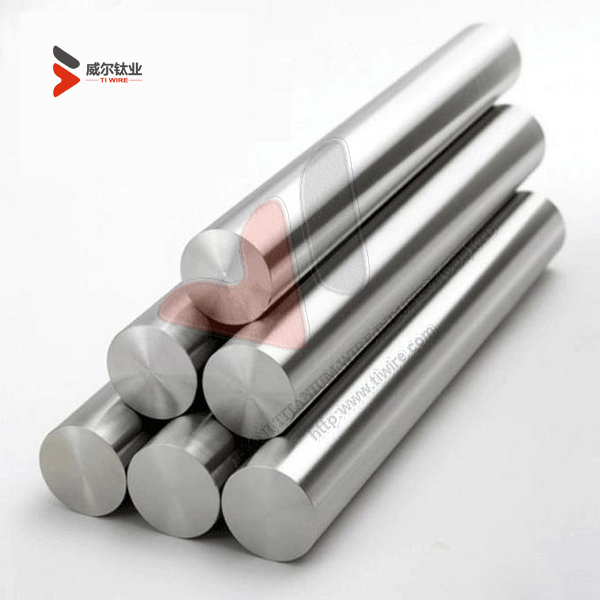

Commercial Pure Titanium Bars & Billets

Gr. 1, Gr. 2, Gr. 3, Gr. 4, Gr. 7/11, Gr. 12

Grades:

CP Ti Grades 1, 2, 3, 4, 7/11, 12

Specifications:

ASTM B348 / ASME SB348, ASTM F67, ISO 5832-2

Diameter & Length Range:

Dia.: From 3 - 355mm (0.118" - 14" )

Length: From 100 - 6000mm (4" - 237")

‍Shape: ‍

Round, Square /flat, Hexagonal, Rectangle

Surface Treatment:

Polished, Peeled, Burnish

Production Capability:

90 Metric Tons/month

Packing:

Standard export plywood case

Delivery Time:

5-15 days

Shipping:

By International Express(TNT, FEDEX, DHL, UPS, etc.), By Air, By Sea

Titanium Bar.pdf

Commercial Pure Titanium Bars & Billets

Description about Titanium rod grades
    Titanium Grade 1-4 is pure Titanium, the other grades are alloys. Pure Titanium is used due to its high corrosion resistance, the alloys because of the extremely high strength to weight ratio.
    Grade 1. Pure Titanium, relatively low strength and high ductility.
    Grade 2. The pure titanium most used. The best combination of strength, ductility and weldability.
    Grade 3. High strength Titanium, used for Matrix-plates in shell and tube heat exchangers.

Chemical Composition:

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr. 1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	Bal
Gr. 2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	Bal
Gr. 3	0.05	0.08	0.015	0.30	0.35	/	/	/	/	/	Bal
Gr. 4	0.05	0.08	0.015	0.50	0.40	/	/	/	/	/	Bal

Mechanical Property:

Grade	Tensile Strength(min)		Yeild Strength(min)		Elongation(%)
Grade	ksi	MPa	ksi	MPa	Elongation(%)
Gr. 1	35	240	20	138	24
Gr. 2	50	345	40	275	20
Gr. 3	65	450	55	380	18
Gr. 4	80	550	70	483	15

Titanium for surgical implants.pdf

Commercial Pure Titanium Bars & Billets of ASTM B348
