AWS A5.16/SFA-5.16 Titanium Welding Wire ERTi-12

Titanium Welding Wire Specification

Titanium offers similar strength of steel but is two times lighter and offers a amazing corrosion resistance. Grade 1 is the most pure type and is mostly welded with Grade 2 filler metal. The weldabillity of Titanium is excellent for most grades but extra care have to be taken for the gas protection on the weld pool, the weld pool needs to stay protected until it cooled down to at least?470oC. Often Titanium is welded in a gas chamber with pure argon gas to make sure that the weld pool gets proper protection. Ti-wire high performance welding wires is compliant AWS A5.16/SFA-5.16 standards for aerospace and power.

PRESENTATION OF BAOJI TITANIUM WIRE INDUSTRY CO., LTD.

Baoji Titanium wire industry Co.Ltd,which is AS9100C, ISO 9001:2008 certified manufacturer of titanium bars, titanium wire,titanium welding wire, filler rods, plates, forged parts for 20 years. Both commercial pure titanium and titanium alloys material. Currently our products serve the clients in aerospace, medical, industrial fields etc.

Tips on How to Choose the Right Titanium Grade

titanium wire, titanium bar, titanium plate, titanium sheet, titanium disc, Gr.2, Gr. 5, Ti6Al4V, Gr.7, Gr. 12, industrial use, medical use, chemical use, aerospace, mining applications

Description
Specification

AWS A5.16 Titanium Welding Wire ERTi-12
Tig-Mig Welding wire for Alloyed Titanium Grade 12

‍‍‍‍‍AWS A5.16 Classification:
    ERTi-12

Shape:
   Straight, in spool

Surface Treatment:
    Polished, Pickled

Specifications:
    AWS A5.16, ASTM B863, AMS4951, AMS4954, ASTM F136

Size
    Diameter: From Ø 0.15mm - 6.0mm (Ø 0.006" - 0.236")
    Length:      From 914mm - 2000mm (Ø 36" - 78.75") -- For straight wire
                     From 1kg - 30kgs per spool                       -- For Spool packing

Production Capability:

     72 Metric Tons/month

Packing:

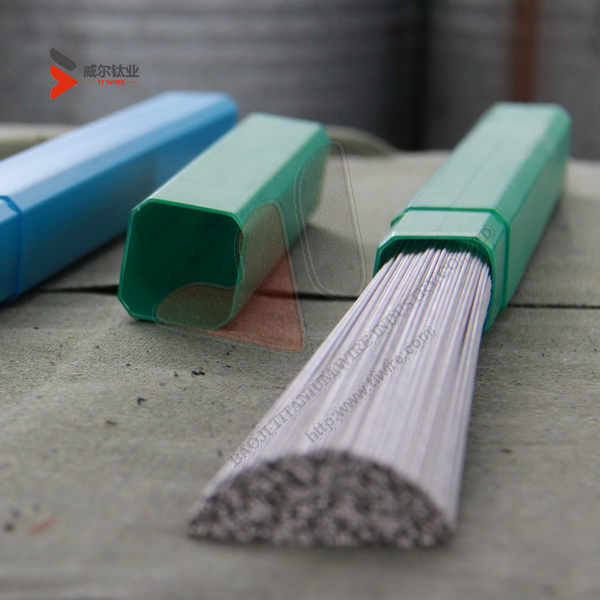

    Straight: sealed with plastic bag in plastic box + plywood case.
In spool: carton box + plywood case.
    As per customer’s requirement.

Delivery Time:
    5-15 days

Shipping:
    By International Express(TNT, FEDEX, DHL, UPS, etc.), By Air, By Sea‍‍‍‍‍

Titanium Welding Wire.pdf

Titanium Welding Wires406.jpg

AWS A5.16 Titanium Welding Wire ERTi-12 UNS R53401 (Ti0.3Mo0.8Ni)
Tig-Mig Welding wire for Titanium Grade 12

Category	BTWI-BPTW Solid wires
Type	Solid drawn Titanium Grade 12 welding wire
Applications	This alloy finds his applications in chemical industry and offers excellent Weldabillity. Often recomended for pressure vessels and piping for its superior strenght alone.
Properties	ER Ti-12. Grade 12 (Ti 0.8Ni0.3Mo) is an intermediate strength grade originally developed to provide enhanced crevice-corrosion resistance in high temperature brines, but at lower cost than Grade 7. The improved performance is believed to be the result of Ni++ and Mo++ ions that alter the surface electrochemistry of the material in the crevice or under a surface deposit. Grade 12 has better elevated temperature properties than Grade 2 or 3 and is sometimes specified for pressure vessels or piping for its superior strength alone.
Classification	AWS A 5.16: ER Ti - 12
	UNS: R53401
Suitable for	Titanium grade 12, Grade 7, Grade 2 and Grade 3

Welding Deposit Weight %:

C	O	N	H	Fe	Al	V	Pd	Mo	Ni
< 0.03	0.08 - 0.16	< 0.015	< 0.008	< 0.15	--	--	--	0.2 - 0.4	0.6 - 0.9

Mechanical Properties:

Heat

Treatment

RP0,2

(N/mm²)

(%)

Impact Energy (J) ISO-V

Hardness

-20°C

-40°C

-60°C

HRc / HV

as welded

345

483

Welding Parameters/Packing:

Welding Parameters			Packing
Dia. (mm)	Length (mm)	Current (A)	kg / tube
1.2	914 -1000mm		5
1.6	914 -1000mm		5
2.0	914 -1000mm		5
2.4	914 -1000mm		5
3.2	914 -1000mm		5
4.0	914 -1000mm		5
Note: Also available as spooled wire :0.8 mm, 1.0 mm and 1.2 mm (D-100 / D-200 / D-300)

Titanium Welding Wire ERTi-12 .pdf

ERTi-12 UNS R53401 AWS A5.16/SFA-5.16 Solid Titanium Welding Wire
